Rangkaian Line Follower Robot

Rangkaian Line Follower Robot

8/06/2011

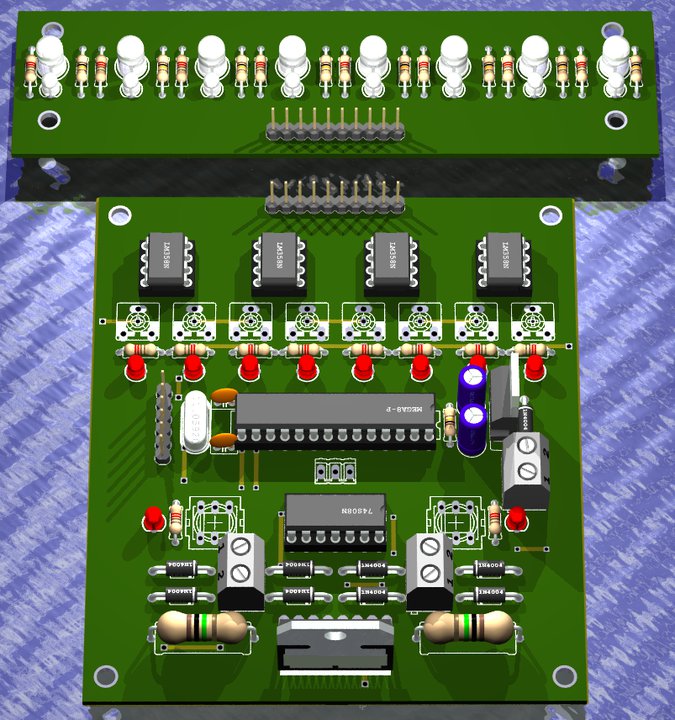

Rangkaian Line Follower Robot...
pake 8 Sensor...
Rangkaian komparator, minimum system dan driver motornya udah dalam 1 pcb...
edited by Guntur Wicaksono..
Check this out..
:-p



Download Skematik Rangkaian SENSOR PDF File
Download Skematik Rangkaian Minimun Sys.+Driver Motor PDF File
Download Line Follower Print PDF-Bottom View
Download Line Follower Print PDF-Top View
Download Eagle Board File
Download Eagle Sch File

Contoh program dengan codevision >>> klik disini

>>>> lihat ini klik
